Applications: Universal air filter element

Filter Type: Cone

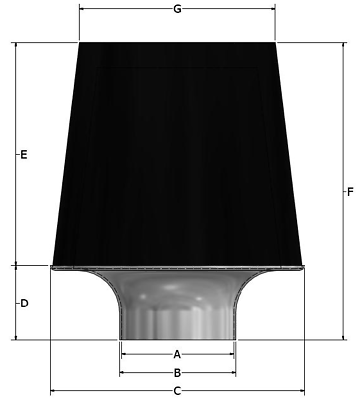

Dimensions:
Flange Inside Diameter (A) 58mm
Flange Outside Diameter (B) 61mm
Base Outside Diameter (C) 149mm
Flange Length (D) 33mm
Filter Length (E) 152mm
Total Length (F) 185mm
Top Diameter (G) 114mm

Manufacturer's Part Number: JC60/58FC

Maxogen

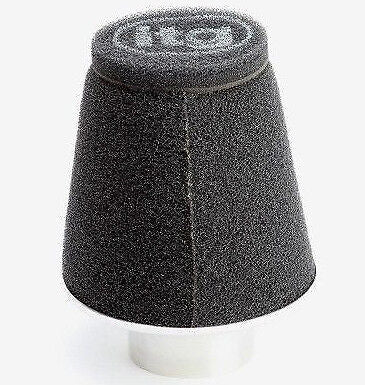

This is the original design of maxogen filter that dates back to the late 1980s. These JC60 filters are reinforced with open pore internals. This allows the filters to be squashed down and manipulated to allow them to be fitted in spaces where there is restricted access. As they do not have a reinforced plastic cage these are not recommended for turbo applications. It is without doubt the lightest filter of this kind on the market.
