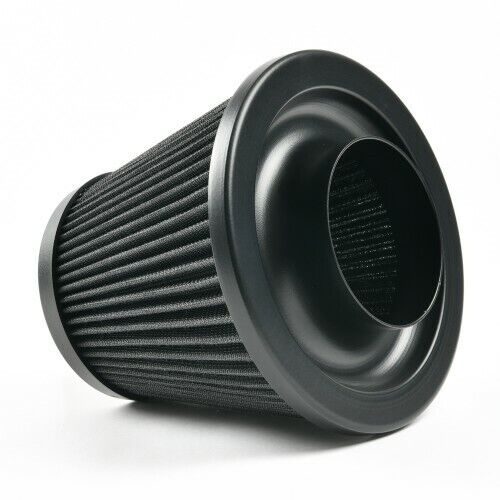

Applications: Universal pleated cotton gauze conical filter - aluminium spinning

Filter Type: Cone

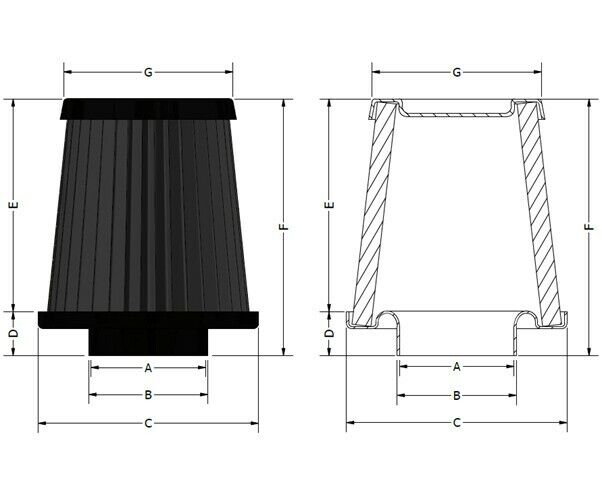

Dimensions:
Neck Inside Diameter (A) 86mm
Neck Outside Diameter (B) 89mm
Spinning Diameter (C) 181mm
Spinning Height (D) 28mm
Pleat Height (E) 145mm
Total Height (F) 173mm
Top Diameter (G) 115mm

Manufacturer's Part Number: JC60/86RPF

Maxogen

ITG’s new Cotton Gauze JC60 range are uniquely built onto a matt black aluminium spinning; which unlike other available items on the market, funnels air smoothly into the intake system. All JC60 Pleated Maxogens will be available to purchase with a foam oversock, for ultimate dust capture capability.

ITG pleated filters are perfect where space is tight, but high power outputs are present.

Pleated Maxogens have been optimized to work best with ITG Foam Oversocks as they significantly improve filtration capabilities and reduce the need for you having to clean/re-oil the main filter element so often.

Search 'Oversock' to find them.
