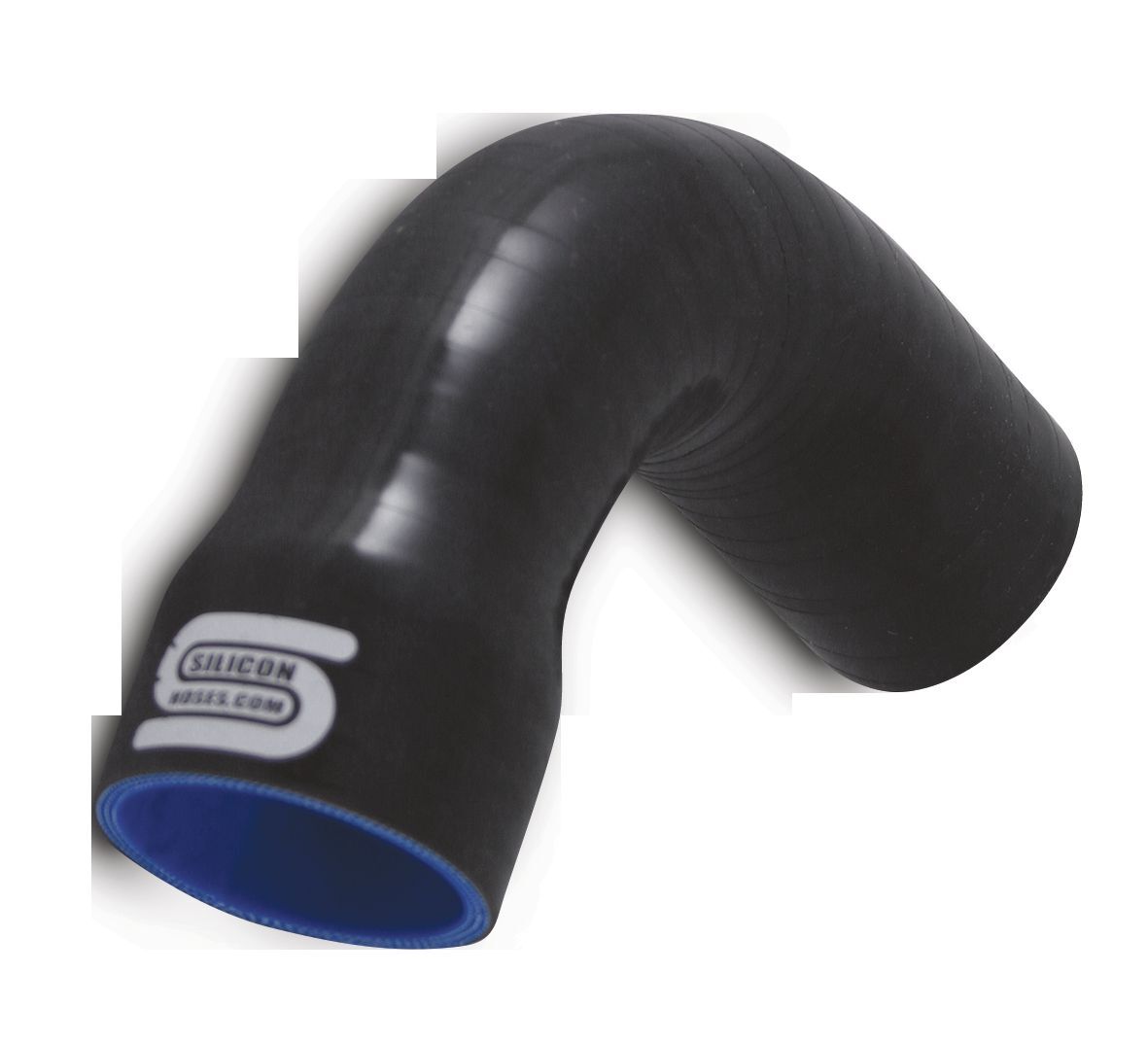

SiliconHoses.com Silicone Reducing Elbow Hoses

• All elbows have equal leg lengths of 63mm up to 12mm diameter, 100mm from 13mm diameter up to 57mm, and 125mm from 60mm diameter up to 102mm diameter.

• From 6mm diameter up to 48mm diameter are of 3 ply construction, and a wall thickness of 3.5mm.

• From 49mm diameter up to 83mm diameter are of 4 ply construction, and a wall thickness of 5mm.

• From 84mm diameter up to 102mm diameter are 5 ply construction, and a wall thickness of 6mm.

• Burst pressures are rated at 4:1 of safe working load. Separate test sheet results available.

• All silicone products are manufactured under the ISO 9001 quality system. Certificate No.07103Q10016ROM

Why SiliconHoses?

Silicon Hoses is a well established name in the industry, with a 35 year history in the development of engineered components and performance engine applications. They are approved suppliers to Ariel Atom Manufacturing Ltd, Saker sports cars, Donkervoort and Z cars.

If it’s automotive, marine or an industrial piece of equipment and requires silicon hoses, they can help! Their hoses are suitable for cooling systems, charge air systems, induction systems and negative/positive pressure signal lines. With its’ temperature range stability, flexibility, longevity, thermal, and electrical insulation properties, silicon polymers are a modern miracle of engineering material science.

Silicon Hoses have endeavoured to manufacture a size range that accommodates every currently asked for diameter.

All hoses are manufactured from high grade silicon polymer, and reinforced with a high strength polyester fabric. This gives a minimum/maximum operating temperature range of -40ºC to +180ºC.

A range of hose accessories is also available. This includes stainless steel rolled edge hose clamps (designed for silicon hosing) from 9mm to 105mm diameters. Hose joiners with rolled swaged beads from 16mm to 102mm. Extruded vacuum tube in handy packs of 3 metre lengths with a bore size from 3mm up to 8mm, and in economical bulk reels of either 15m or 30 metre length.
